Road Markings Retroreflector Meter With Line Color Measurement

  • 1
  • 2
  • 3

Brand Name : STP

Model Number : STP-NRRM

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : negotionable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000

Packaging Details : inner box and master carton , 1pc per carton . carton size : 55*36*23CM

Detection modes : dry mode, wet mode and rainy night mode

Observation angle : 1.05°

Angle of incidence : 88.76°

Line color : white, yellow, red, green or blue

The whole machine net weight : 2.85Kg

The total weight : 9Kg

Charging voltage/current : DC12.6V/2A

Multiple measurements : yes

Test data : more than 99,999

SD : 32G

Contact Now

Simple Calibration Procedure Road Markings Retroreflector With The Line Color Measurement

Product introduction

STP-NRRM marking retroreflectometer is to measure the in-night brightness of road marking made of retroreflective material simulating under illumination from the headlights of vehicles driving on road, i.e, the in-night brightness observed by the driver in vehicle.

The angle between the optical axis of the headlamp and the normal line (reference axis) of the road surface is called the incidence angle, which is set at 88.76° and the angle between the optical axis of the headlamp and the reflected light is called the observation angle, which is set at 1.05°.

Main technical parameters

Measuring aperture area 450mm x65mm
Error of repeatability measurement ≤5%
Angle of incidence 88.76°
Observation angle 1.05°
Complementary angle 1.24°
Measurement range 0---4000

Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1

PICTURES

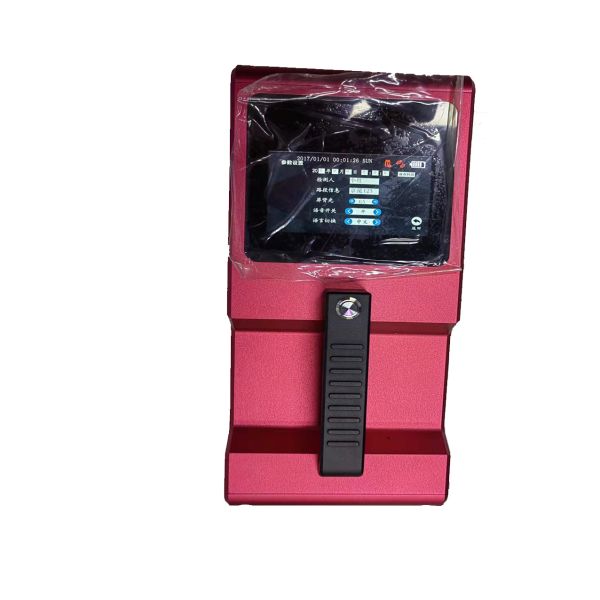

Road Markings Retroreflector Meter With Line Color Measurement

Road Markings Retroreflector Meter With Line Color Measurement

Our Service

Customized Logo

Free logo printing will be offered if order quantity is above 1pcs.

Our Warranty

1 Years warranty for all customers .

Spare Parts

A proportion of spare parts will be shipped along with formal orders.

Shipment

DHL , FEDEX , UPS , TNT , EMS :5-7 working days

Any other shipment way could be negoticated
